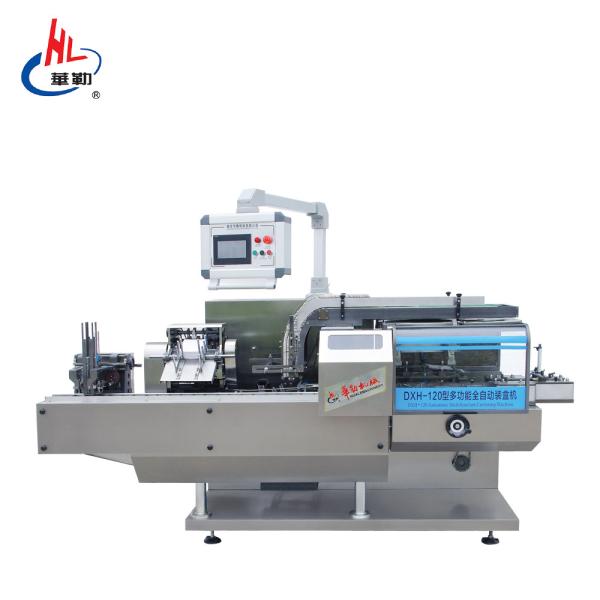

Pharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning machine

WENZHOU HUALE MACHINERY CO.,LTD

Pharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning machine

Brand Name : HUALE MACHINERY

Model Number : DXH-120WB

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1set

Price : Negotiation

Supply Ability : 10 Set per month

Delivery Time : 30 working days after received your payment.

Packaging Details : EXPORTED WOODEN BOX

Product Name : Blister Cartoning Machine

Output : Max.120 boxes/min

Box Dimension Range : (55-200)mm*(20-80)mm*(14-45)mm

Material Consist : Stainless steel 304

Control : PLC control

Capacity of air compressor : ≥0.5Mpa

Power Supply : 380V/220V 50HZ 0.75KW

Contact Now

Pharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning Machine

This machine can pack different sizes and specifics of blister plate or similar objects with

automatic leaflet folding, inserting, carton opening, batch number embossing and carton

sealing (hot glue sealing is an optional for the machine).

Pharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning machinePharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning machine

Specifications:

blister box packing machine

PLC and touch screen

Speed is 100boxes/min

Insert leaflet and product

CE,GMP

Description

  • It adopts PLC control and touch screen operating system with speed adjusted.
  • Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
  • Main transmission system gets overloading protecting device
  • The machine gets stable performance, easy changing different sizes of products
  • Detection and Rejection of cartons which gets no object fed or leaflet fed.
  • Servo motor pulling is apply to feed different styles of blister plate.

DXH-120WB main technical parameters

Speed

50-120box/min

Carton

Quality Requirement

250-350g/m2

Dimension Range (L×W×H)

(50-200) ×(20-80) ×(14-45)mm

leaflet

Quality Requirement

55-65g/m2

Folded Leaflet Specification

(80-240)X(90-190)mm

Folding Range

1-4 fold

Air Consumption

>0.5Pa 120-160L/min

Motor Power

0.75kw 220V 50HZ

Machine Dimension (L×W×H)

3100x1100x1600mm

Machine Net Weight

About 1500kg

WARRANTY

  1. Technical Support(24 hours on line trademanager, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
